4 CH HIKVISION 5MP 4K TURBO HDMI 2X CAMERA CCTV KIT 5201

Σύμφωνα με 0 αξιολογήσεις. - Γράψτε μια αξιολόγηση

247,00€

Χωρίς ΦΠΑ: 199,19€

Απόθεμα: Διαθέσιμο
Κωδικός: CCTV KIT 2509
Βάρος: 3.00kg

hikvision

Product Views: 5775

Ποσότητα

Καλάθι

Αγορά Τώρα Ερώτηση

Επιθυμητό Σύγκριση

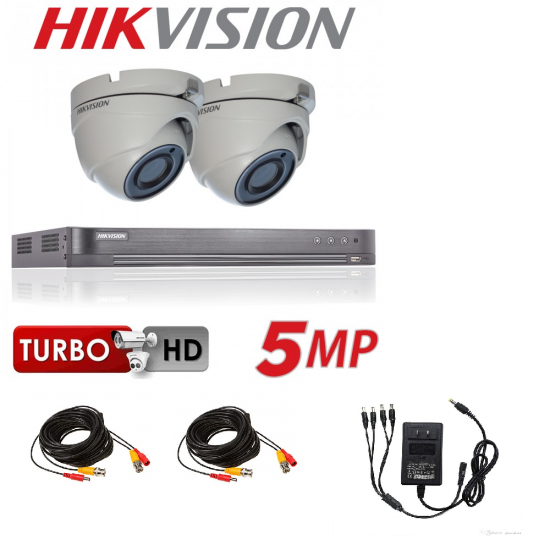

4 CH HIKVISION 5MP 4K TURBO HDMI 2X CAMERA CCTV KIT 5201

Το κιτ περιλαμβάνει

1 καταγραφικό DVR HIKVISION 7204HUHI-K1

2 κάμερες HIKVISION DS-2CE56H0T-ITM

Tεχνικά χαρακτηριστικά

DVR

Video/Audio Input
Audio Input:	\|	4-ch
Video Compression:	\|	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:	\|	4-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	\|	Support HDTVI input: 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input
Video Input Interface:	\|	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	\|	G.711u
Audio Input Interface:	\|	RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output:	\|	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:	\|	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:	\|	5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:	\|	Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:	\|	32 Kbps-10 Mbps
Stream Type:	\|	Video/Video&Audio
Two-way Audio:	\|	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	\|	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	\|	64kbps
Dual Stream:	\|	Support
Playback Resolution:	\|	5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF
Synchronous Playback:	\|	4-ch
Network management
Remote connections:	\|	128
Network protocols:	\|	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	\|	1 SATA Interface
Capacity:	\|	Up to 8 TB capacity for each disk
External Interface
Network Interface:	\|	1; 10M / 100M self-adaptive Ethernet interface
USB Interface:	\|	2 USB 2.0 Interfaces
Serial Interface:	\|	1; standard RS-485 serial interface, half-duplex
General
Power Supply:	\|	12V DC
Consumption:	\|	≤ 10W(without hard disks)
Working Temperature:	\|	-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:	\|	10% to 90%
Dimensions:	\|	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight:	\|	≤ 1.16 kg (2.6 lb)

CAMERA SPEC:

Camera
Image Sensor:		5MP CMOS Image Sensor
Effective Pixels:		2560 (H) × 1944 (V)
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		2560 × 1944 @ 20fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal/Power synchronization

Menu
D/N Mode:		Auto / Color / B/W
Auto White Balance:		Auto/MWB
BLC:		Support
AGC:		Support
Language:		English

General
Operating Conditions:		-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±25%
Weather Proof:		IP67
IR Range:		Up to 20m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		91 mm × 82.6 mm × 68.3 mm (3.58″ × 3.25″ × 2.69″)
Weight:		Approx. 350 g (0.77 lb)



		Tο κιτ για να ειναι πληρως λειτουργικο έτοιμο προς εγκατάσταση απαιτουνται 1 σκληρός δίσκος Eπιλέξτε εδώ 1 τοφοδοτικό καμερών Επιλέξτε εδώ Καλώδιο CCTV Επιλέξτε εδώ

HIKVISION YOUTUBE VIDEOS

Ετικέτες: 5MP , 5mpixel , CAMERA , CAMERA KIT , cctv , CCTV KIT , DOME , dome camera , DS-2CE56H0T-ITM , DS-7204HUHI-K1 , dvr , HIKVISION , ΚΑΜΕΡΑ , ΣΥΣΤΗΜΑ ΚΑΜΕΡΩΝ
